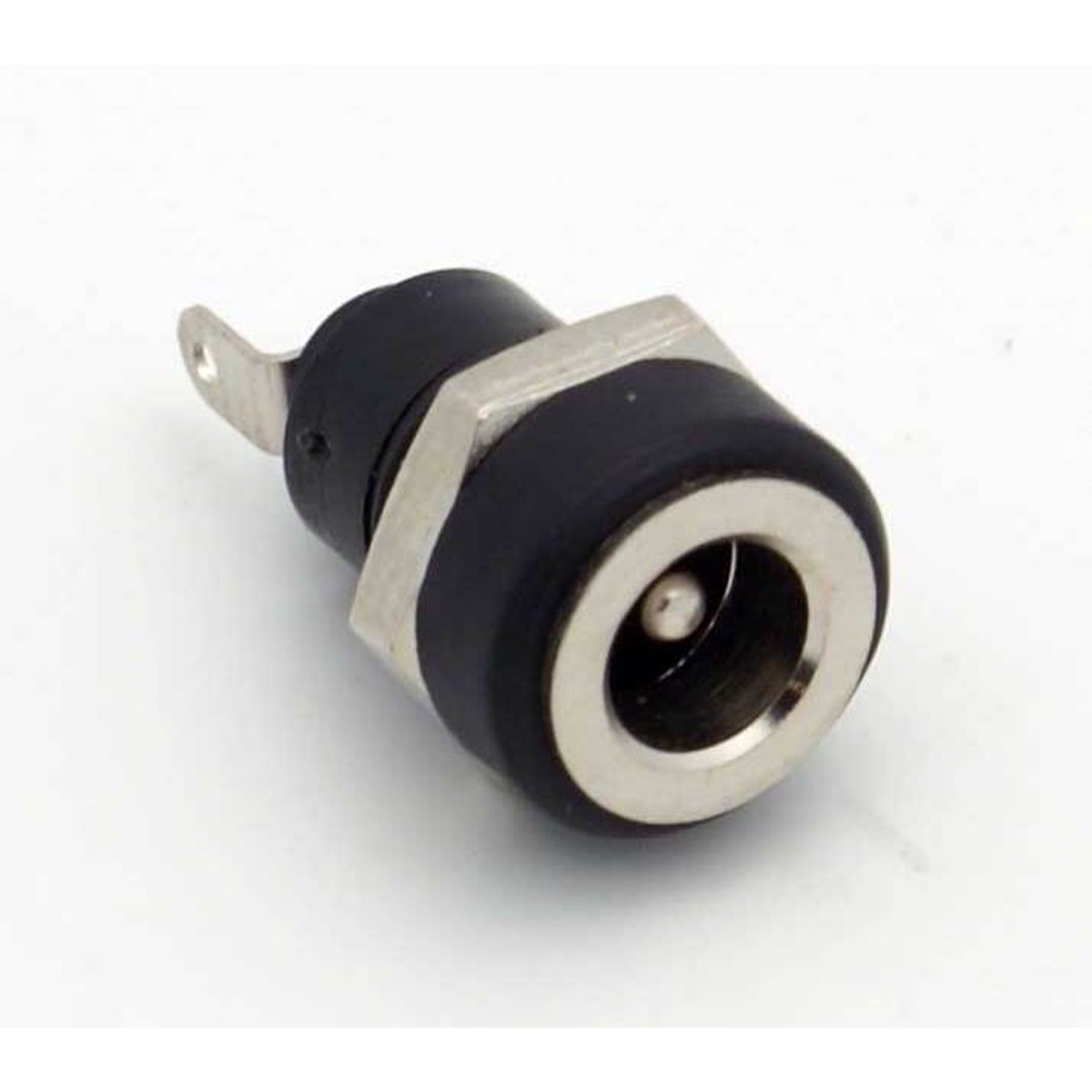

1.7mm x 4.75mm DC Power Panel Mount Jack

Easy-to-Install DC Power Jack for Everyday Projects

Looking for a simple and reliable way to add a power connection to your electronics project or custom enclosure? The 1.7mm x 4.75mm DC power panel mount jack makes it easy to add safe, secure, and convenient power input to your devices. Great for DIY builds, repairs, and hobby electronics!

Features & Benefits of This Panel Mount DC Jack

• Universal Fit: 1.7mm center pin with a 4.75mm inner diameter works with common DC power plugs, including the PH-275B 1.7mm DC Plug.
• Panel Mount Design: Mounts securely to panels or project boxes with a 0.325″ mounting hole. Includes nut for fast installation.
• Reliable Connections: Features easy-to-solder terminals designed for 18-24 AWG wire.
• Durable and Compact: Compact overall dimensions (0.58″ tall x 0.38″ wide) save space in your design.
• Versatile Power Solution: Can be used as a DC barrel jack or DC coaxial jack in a wide variety of low-voltage power applications.

Technical Specifications

• Compatible Plug: 1.7mm x 4.75mm DC Plug PH-275B
• Jack Type: DC barrel (Type C) / DC power connector
• Center Pin: 1.7mm
• Inner Diameter: 4.75mm
• Solder Terminals: For 18-24 AWG wire
• Mounting Hole Size: 0.325″ (approx. 8.25mm)
• Overall Dimensions: 0.58″ (height) x 0.38″ (width)
• Includes: 1 DC power jack and mounting nut
• Vetco Product ID: 375B

Perfect for a Wide Variety of Uses

This panel mount DC power jack is a great choice for powering Arduino projects, small appliances, audio devices, DIY LED lighting, and more. Its sturdy construction and easy wiring make it a favorite among makers and electronics enthusiasts.
