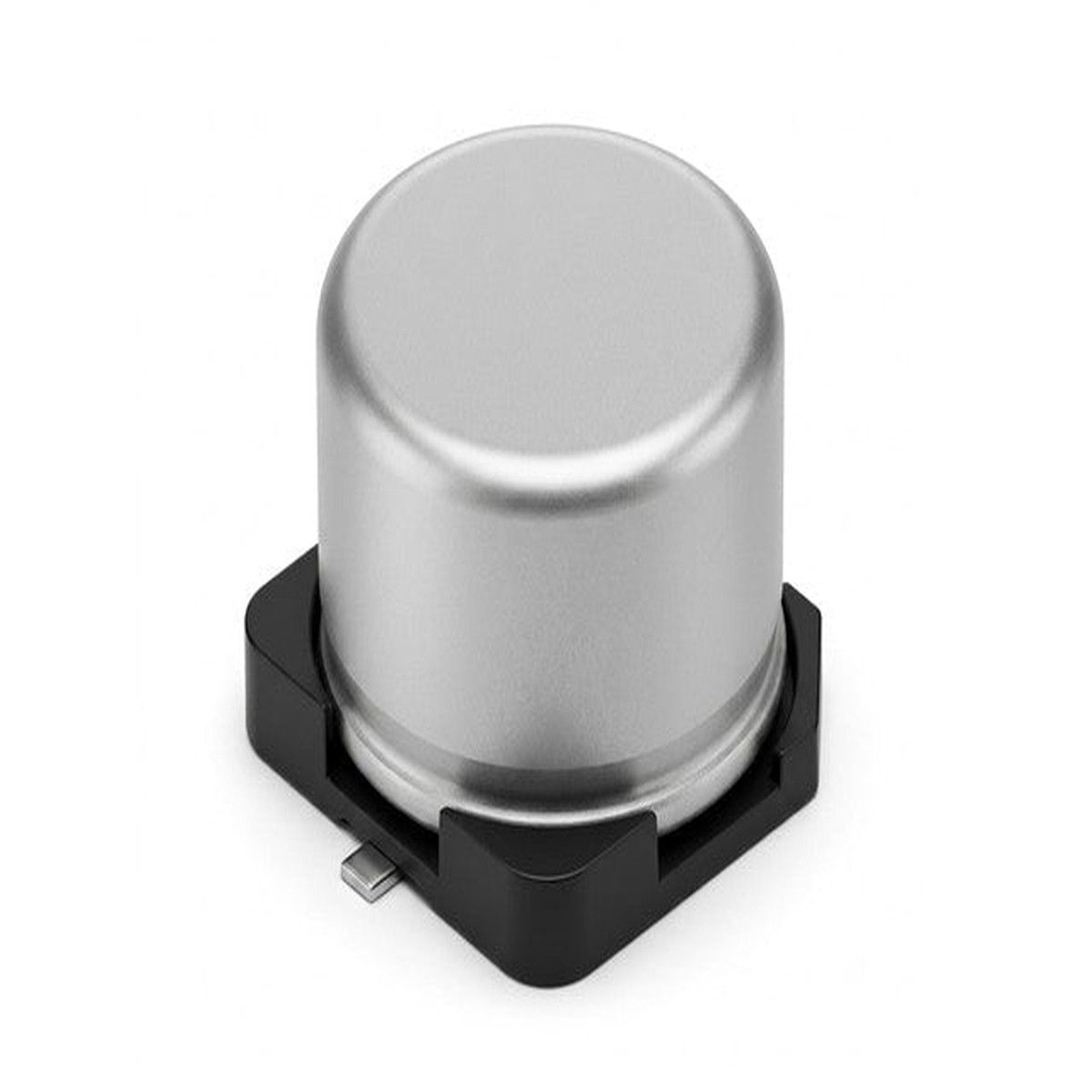

LZ Series Capacitor Electrolytic SMD 5X5,4MM Low ESR 105C 95MA 1.8 OHM

LZ Series Capacitor Electrolytic SMD

Specifications

• Series: LZ Series
• Product Type: Aluminum Electrolytic Capacitor
• Mounting Type: Surface Mount Device (SMD/SMT)
• Package Size: 5.0 mm (Diameter) 5.4 mm (Height)
• Case Style: Cylindrical Can
• Polarity: Polarized
• ESR (Equivalent Series Resistance): 1.8 (Max.)
• Ripple Current: 95 mA (RMS)
• Temperature Rating: 105C
• Operating Temperature Range: -55C to +105C
• Capacitance: Varies by part number
• Rated Voltage: Varies by part number
• Capacitance Tolerance: Typically 20%
• Load Life: Typically 2,000 hours at 105C
• Applications: Power supplies, DC-DC converters, signal filtering, consumer electronics, industrial control equipment, LED drivers, and general-purpose electronic circuits
• RoHS Compliance: Yes
• Features: Low ESR design, compact SMD package, high-temperature operation, stable performance, suitable for high-frequency and ripple current applications.
