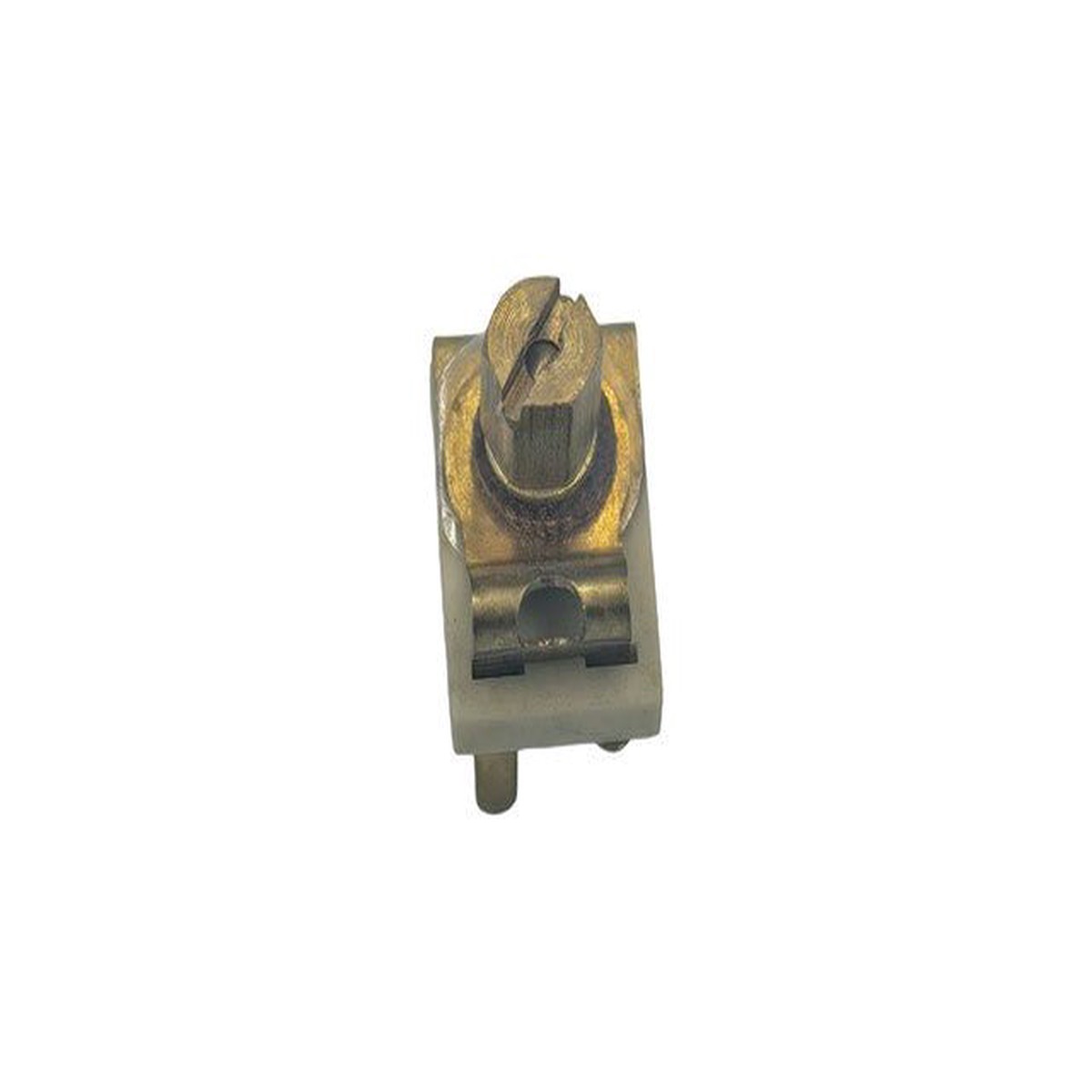

Trimmer Capacitor Film Dielectric Open Frame

Ceramic Trimmer Capacitor

Feature(s)

• Fine capacitance adjustment
• Compact ceramic construction
• Stable tuning characteristics
• Low dielectric loss
• High reliability
• RoHS compliant

Specifications

• Product Type: Ceramic Trimmer Capacitor
• Capacitance Range: 535 pF
• Dielectric Material: Ceramic
• Rated Voltage: 25 V DC
• Adjustment Type: Top Adjustment
• Mounting Type: Through-Hole
• Lead Type: Radial
• Body Diameter: Approximately 3 mm
• Body Height: Approximately 1.8 mm
• Q Factor: 200 @ 1 MHz
• Operating Temperature: -25C to +85C
• Insulation Resistance: High
• Polarity: Non-Polarized
