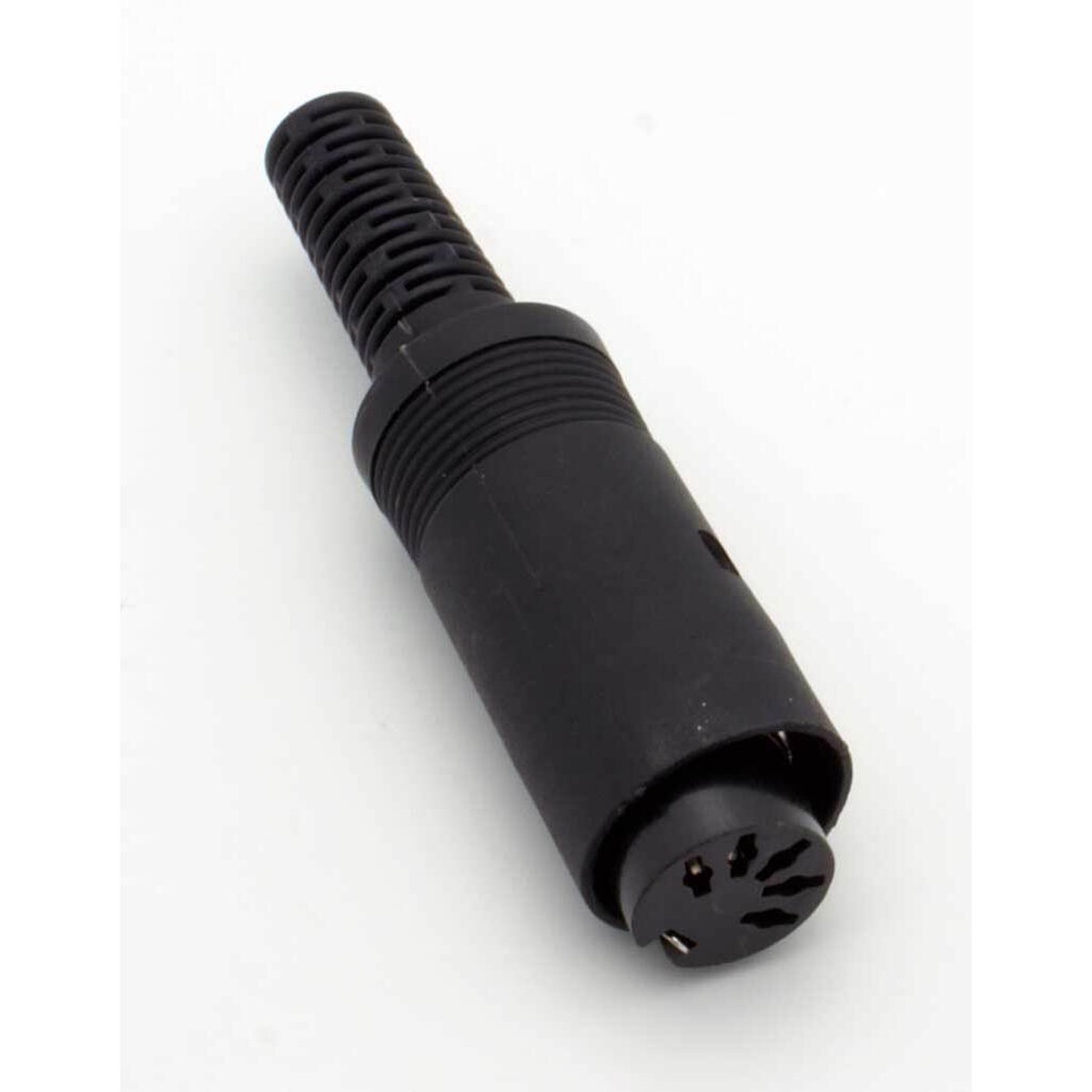

5 Pin DIN Female Inline Jack Connector

Reliable 5 Pin DIN Female Inline Connector for Audio and Electronics Projects

Upgrade your cables or old devices with this easy-to-use 5 Pin DIN Female Inline Jack Connector. Designed for straightforward do-it-yourself repairs and new builds, this connector works great with home audio systems, vintage hi-fi gear, MIDI keyboards, and custom electronics projects.

Key Features of the 5 Pin DIN Female Inline Jack

• 5 Pin DIN Female Connector Compatible with standard 5 pin DIN male plugs found in many popular audio and MIDI devices.
• Inline, Solder Lug Style The body disassembles easily, revealing accessible solder lugs that accept wire sizes up to 22 AWG. Perfect for reliable, long-lasting connections.
• Molded Strain Relief Built-in strain relief secures your cable and helps prevent wire pull-out. Fits cables up to 7mm (about 0.28″) in diameter.
• Durable and Compact Overall size: 2.55″ (65mm) long, 0.65″ (16.5mm) diameter. Quality materials ensure a snug fit and lasting connections.

Applications and Compatibility

This 5 Pin DIN female inline jack connector is commonly used in:

• Audio equipment (vintage stereos, preamps, tape decks)
• MIDI gear (keyboards, synthesizers, drum machines)
• DIY audio cables and repairs
• Custom electronics and hobby projects

It easily mates with our 5 Pin DIN Male Inline Plug (PAN-DIN-46000-3P). Also available: panel mount and PC board mount versions for all your project needs.

Why Choose This 5 Pin DIN Female Connector?

• Simple, secure soldering for long-lasting performance
• Supports a variety of applicationsreplace or build your own cables easily
• Fits most standard 5 pin DIN devices and accessories

Technical Specifications

• Connector Type: 5 Pin DIN Female Inline Jack
• Lead Type: Solder Lugs, up to 22 AWG wire
• Strain Relief: Molded (up to 7mm cable diameter)
• Overall Length: 2.55″ (65mm)
• Diameter: 0.65″ (16.5mm)
• Manufacturer Part Number: PAN-DIN-46100-5S
• Quantity: 1 connector per package

Complete Selection of DIN and Mini-DIN Connectors

Vetco Electronics offers a full range of 5 pin DIN connectors, including inline plugs, panel mount jacks, and PC board mount sockets. Find the right DIN connector for your projectshop with confidence and enjoy friendly technical support!
