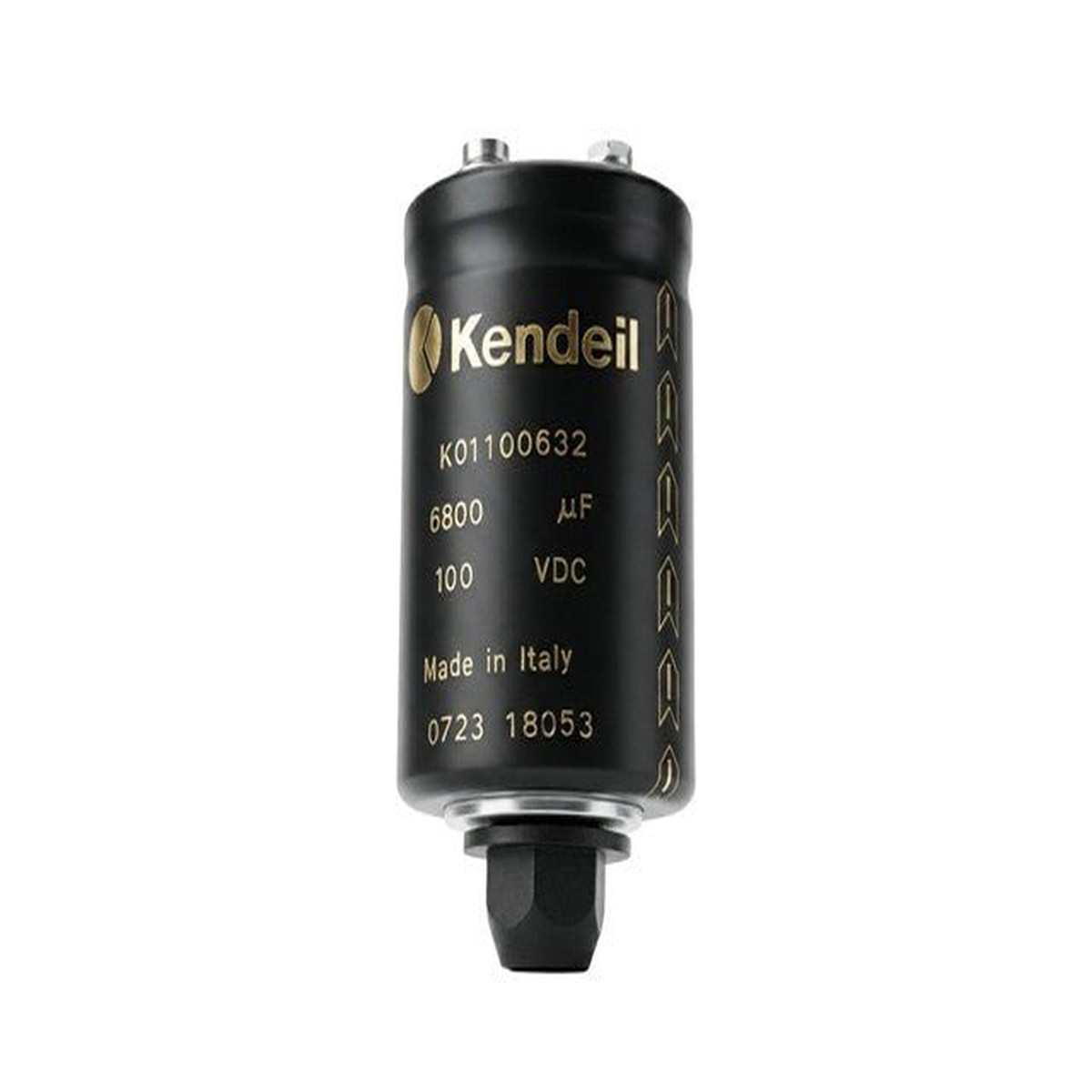

Capacitor ELCO Screw Terminal STUD 51X79 11,1A RIPL

Capacitor ELCO Screw Terminal STUD

Specifications

• Product Type: Aluminum Electrolytic Capacitor
• Capacitance: 6800 F
• Rated Voltage: 100 V DC
• Tolerance: 20% (M)
• Series: K01
• Mounting Type: Screw Terminal
• Terminal Size: M12
• Polarity: Polarized
• Operating Temperature: -40C to +85C
• Maximum Dissipation Factor (tan ): 0.12 (at 100 Hz)
• Typical ESR: 15 m (at 100 Hz)
• Typical Impedance: 13 m (at 10 kHz)
• Maximum Leakage Current: 6.0 mA (after 5 minutes at 20C)
• Maximum Ripple Current: 14.1 A RMS (at 85C)
• Useful Life:

  • 12,000 hours (100 V rating)

  • 15,000 hours (higher voltage variants)

• Housing Type: Aluminum Can
• Mounting Style: Chassis Mount
• Reference Standards:
  • IEC 384-4
  • CECC 30.300
  • RoHS Compliant
• Typical Applications:
  • Power supplies
  • Industrial automation equipment
  • Motor drives
  • UPS systems
  • Inverters
  • Audio amplifiers
  • Energy storage and DC bus filtering
