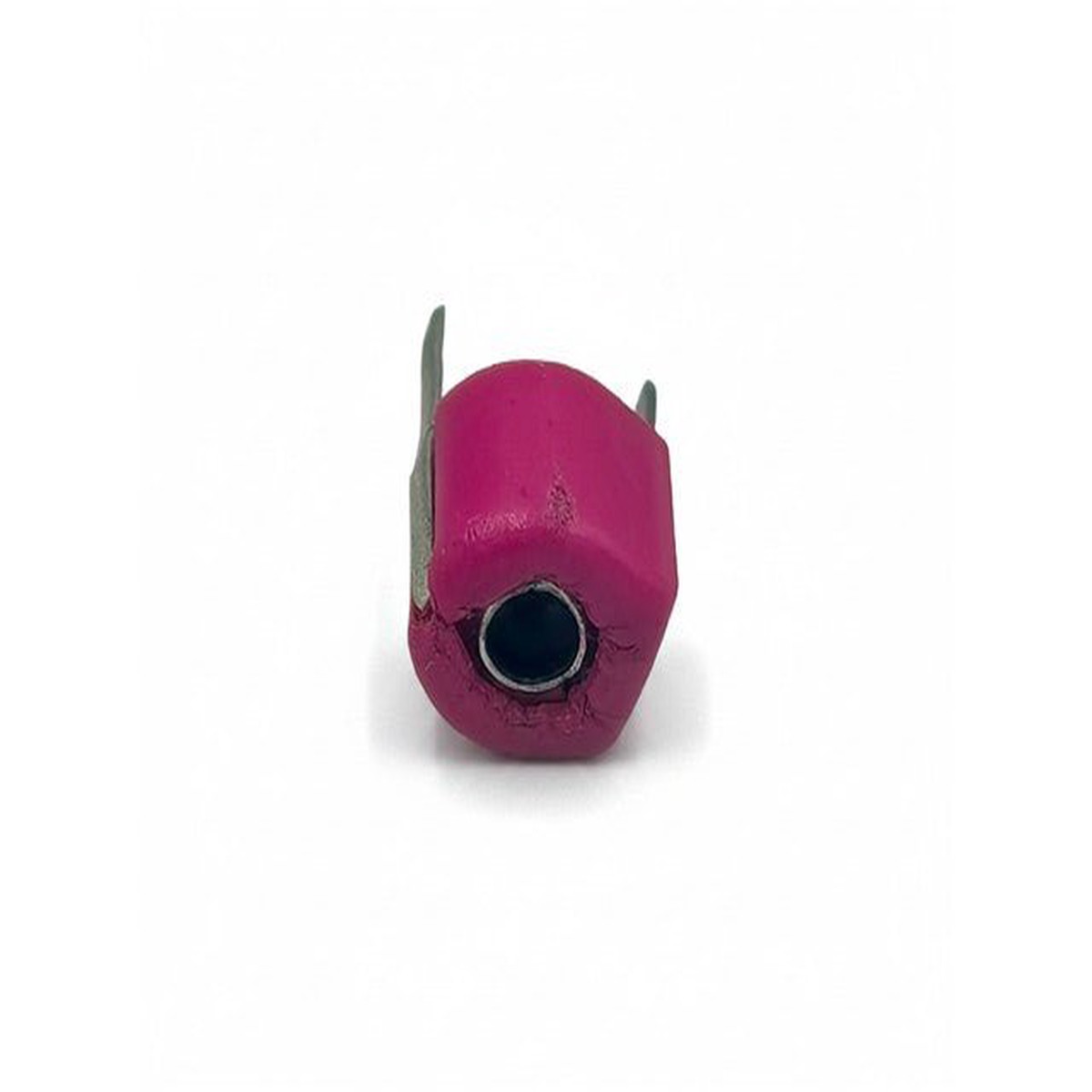

Trimmer Capacitor Ceramic 4,2-20P Horizontal Red 6MM

Trimmer Capacitor Ceramic

Feature(s)

• Fine capacitance adjustment
• Stable RF tuning performance
• Compact 6 mm package
• Low-loss ceramic dielectric
• Suitable for high-frequency applications

Specifications

• Product Type: Ceramic Trimmer Capacitor
• Series: TSCS06
• Capacitance Range: 4.220 pF
• Adjustment Type: Horizontal (Side Adjustment)
• Body Diameter: 6 mm
• Dielectric Material: Ceramic
• Body Color: Red
• Mounting Type: Through-Hole
• Lead Type: Radial
• Rated Voltage: 100 V DC
• Temperature Characteristic: N750
• Q Factor: 500 @ 1 MHz
• Insulation Resistance: 10 G
• Operating Temperature: -25C to +85C
